Product Summary
The MOC3083M is a 6-pin dip zero-cross optoisolator. It consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. The MOC3083M is designed for use with a discrete power triac in the interface of logic systems to equipment powered from 240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc. The applications of the MOC3083M include: Solenoid/valve controls, Lighting controls, Static power switches, AC motor drives, Temperature controls, E.M. contactors, AC motor starters, Solid state relays.
Parametrics
MOC3083M absolute maximum ratings: (1)Storage Temperature TSTG: -40 to +150 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)Junction Temperature Range TJ: -40 to +100 ℃; (5)Isolation Surge Voltage(peak AC voltage, 60Hz, 1 sec duration)VISO: 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃ PD: 250 mW; Derate above 25℃: 2.94 mW/℃; (7)Continuous Forward Current IF: 60 mA; (8)Reverse Voltage VR: 6 V; (9)Total Power Dissipation 25℃ Ambient PD: 120 mW; Derate above 25℃: 1.41 mW/℃.
Features
MOC3083M features: (1)Underwriters Laboratories (UL) recognized - file #E90700, Volume 2; (2)VDE recognized - file #102497 - add option V (e.g., MOC3083VM); (3)Simplifies logic control of 240 VAC power; (4)Zero voltage crossing; (5)dv/dt of 1500 V/μs typical, 600 V/μs guaranteed; (6)Compatible with Fairchild FKPF12N80 discrete power triac.

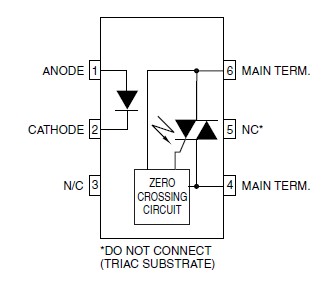

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MOC3083M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 800V Optocoupler Triac Driver ZC |
Data Sheet |
|
|
|||||||||||||
