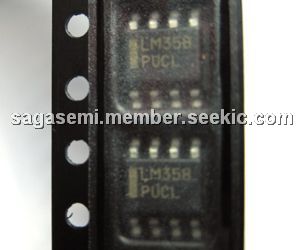

LM358DR

Product Summary

The LM358DR is a dual operational amplifier. This device consists of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V and VCC is at least 1.5 V more positive than the input common-mode voltage. The applications of the LM358DR include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits.

Parametrics

LM358DR absolute maximum ratings: (1)Supply voltage, VCC: ±16 or 32V; (2)Differential input voltage, VID: ±32 V; (3)Input voltage, VI (either input): －0.3 to 32V; (4)Duration of output short circuit (one amplifier) to ground at (or below) 25℃ free-air temperature (VCC ≤ 15 V): Unlimited; (5)Package thermal impedance, θJA: D package 97℃/W; GK package 172℃/W; P package 85℃/W; PS package 95℃/W; PW package 149℃/W; (6)Package thermal impedance, θJC: FK package 5.61℃/W; JG package 14.5℃/W; (7)Operating free-air temperature range, TA: 0 to 70℃; (8)Operating virtual junction temperature, TJ: 150℃; (9)Case temperature for 60 seconds, FK package: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds, JG package: 300℃; (11)Storage temperature range, Tstg: －65 to 150℃.

Features

LM358DR features: (1)Wide Supply Range: Single Supply: 3 V to 32 V; Or Dual Supplies: ±1.5V to ±16V; (2)Low Supply-Current Drain, Independent of Supply Voltage :0.7mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters: Input Offset Voltage: 3 mV Typ; A Versions: 2 mV Typ; Input Offset Current: 2nA Typ; Input Bias Current: 20nA Typ; A Versions: 15nA Typ; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7) Internal Frequency Compensation.

Diagrams
