Product Summary
APPLICATIONS
? Programmable logic controllers
? Measuring instruments
? Power supply
?Hybrid IC
Parametrics
FEATURES
? High isolation voltage (BV = 2 500 Vr.m.s.)
? Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm)
? High collector to emitter voltage (V CEO = 80 V)
? High-speed switching (t r = 3 μs TYP., t f = 5 μs TYP.)
? UL approved: File No. E72422 (S)
? VDE0884 approved (Option): PS2801-4 only
? Operating number of taping product: PS2801-1-F3, F4, PS2801-4-F3, F4
Features
DESCRIPTION
The PS2801-1 and PS2801-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN
silicon phototransistor in a plastic SOP for high density applications.
This package has shield effect to cut off ambient light.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

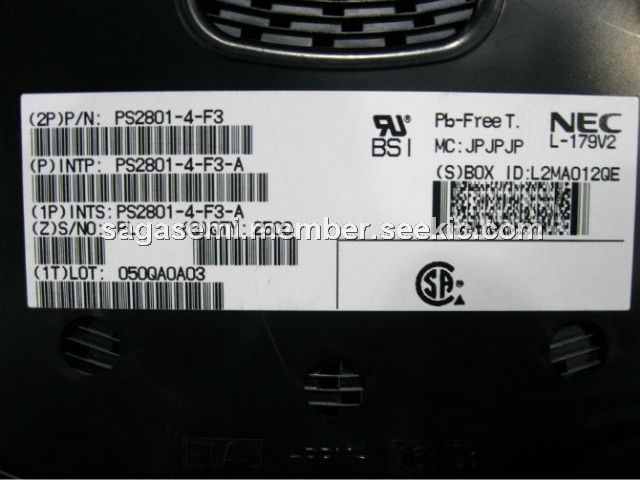

 PS2801-4-F3-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 4-Ch |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
PS2801-1 |
NEC/CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
Negotiable |
|
||||||||||||||
|
PS2801-1-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
 |
PS2801-1-F3 |
|
OPTOISOLATOR 1CH TRANS OUT 4SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
|
PS2801-1-F3-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2801-1-F3-K-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2801-1-F3-L-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
