TLP290(GB-TP,E)

GaAs IRED & PHOTO-TRANSISTOR, SOP-4, DC, 0.05 A, 80 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~0.05

PartNumber:: TLP290(GB-TP,E)

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eline's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-17

From Other Seller

Part Number:TLP290(GB-TP,E)
US $0.02 - 0.05
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

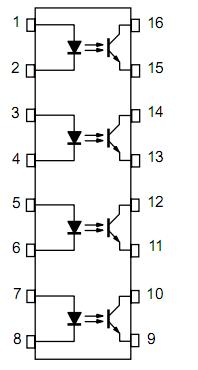

The TLP290(GB-TP,E) is a GaAs IRED & PHOTO-TRANSISTOR. It consists of photo transistor, optically coupled to a gallium arsenide infrared emitting diode. The TLP290(GB-TP,E) is housed in the SO16 package, very small and thin coupler.

Parametrics

TLP290(GB-TP,E) absolute maximum ratings: (1)LED, Forward Current IF: 50 mA; Forward Current Derating ΔIF /℃: -0.5 (Ta≥25℃) mA /℃; Pulse Forward Current IFP: 1 A; Reverse Voltage VR: 5 V; Junction Temperature Tj: 125℃; (2)detector, Collector-Emitter Voltage VCEO: 80 V; Emitter-Collector Voltage VECO: 7 V; Collector Current IC: 50 mA; Collector Power Dissipation (1 Circuit) PC: 100 mW; Collector Power Dissipation; (3)Derating(Ta≥25℃) (1 Circuit) ΔPC /℃: -1.0 mW /℃; Junction Temperature Tj: 125℃; (4)Operating Temperature Range Topr: -55~100℃; (5)Storage Temperature Range Tstg: -55~125℃; (6)Lead Soldering Temperature Tsol: 260 (10s)℃; (7)Total Package Power Dissipation (1 Circuit) PT: 170 mW; (8)Total Package Power Dissipation Derating (Ta≥25℃) (1 Circuit) ΔPT /℃: -1.7 mW /℃; (9)Isolation Voltage BVS: 2500(AC,1min,R.H.≤60%) Vrms.

Features

TLP290(GB-TP,E) features: (1)Collector-Emitter Voltage: 80 V (min); (2)Current Transfer Ratio: 50% (min), Rank GB: 100% (min); (3)Isolation Voltage: 2500 Vrms (min); (4)Guaranteed performance over -55 to 110℃; (5)UL (under preparation): UL1577 , File No. E67349.
