Product Summary

The 74hc139 is a dual 2-to-4 line decoder/demultiplexer. The 74hc139 is a high-speed Si-gate CMOS device and are pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. This 74hc139 has two independent decoders, each accepting two binary weighted inputs (nA0 and nA1) and providing four mutually exclusive active LOW outputs (nY0 to nY3).

Parametrics

74hc139 absolute maximum ratings: (1)tPHL/ tPLH propagation delay CL = 15pF; VCC = 5 V; (2)nAn to nYn: 13 ns; (3)nE3 to nYn: 13 ns; (4)CI input capacitance: 3.5pF; (5)CPD power dissipation capacitance per multiplexer: 44pF.

Features

74hc139 features: (1)Demultiplexing capability; (2)Two independent 2-to-4 decoders; (3)Multifunction capability; (4)Active LOW mutually exclusive outputs; (5)Output capability: standard; (6)ICC category: MSI.

Diagrams

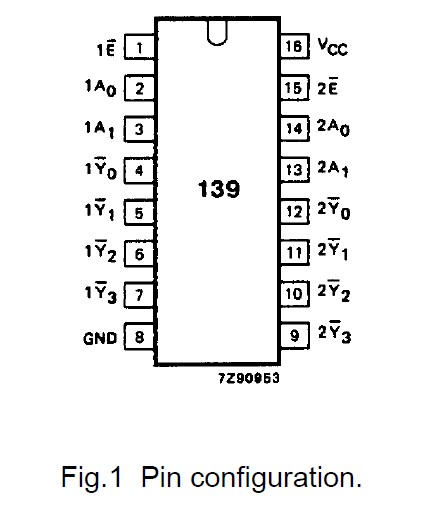

74hc139 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC139D,652
74HC139D,652

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 2-4 LINE DCOD/DMUX

Data Sheet

0-1: $0.07
1-25: $0.07
25-100: $0.07
100-250: $0.06
74HC139D,653
74HC139D,653

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers DUAL 2-4 LINE DECODER/DEMUX

Data Sheet

0-1: $0.14
1-25: $0.11
25-100: $0.10
100-250: $0.08
74HC139DB
74HC139DB

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers DUAL 2-4 LINE DECODER/DEMUX

Data Sheet

Negotiable
74HC139DB,112
74HC139DB,112

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers DUAL 2-4 LINE

Data Sheet

0-1: $0.37
1-25: $0.32
25-100: $0.27
100-250: $0.24
74HC139DB-T
74HC139DB-T

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers DUAL 2-4 LINE DECODER/DEMUX

Data Sheet

Negotiable
74HC139N,652
74HC139N,652

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 2-4 LINE DCOD/DMUX DUAL

Data Sheet

0-1: $0.11
1-25: $0.10
25-100: $0.10
100-250: $0.09
74HC139D
74HC139D

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 2-4 LINE DCOD/DMUX DUAL

Data Sheet

Negotiable
74HC139PW-T
74HC139PW-T

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers DUAL 2-4 LINE DECODER/DEMUX

Data Sheet

Negotiable
