Product Summary

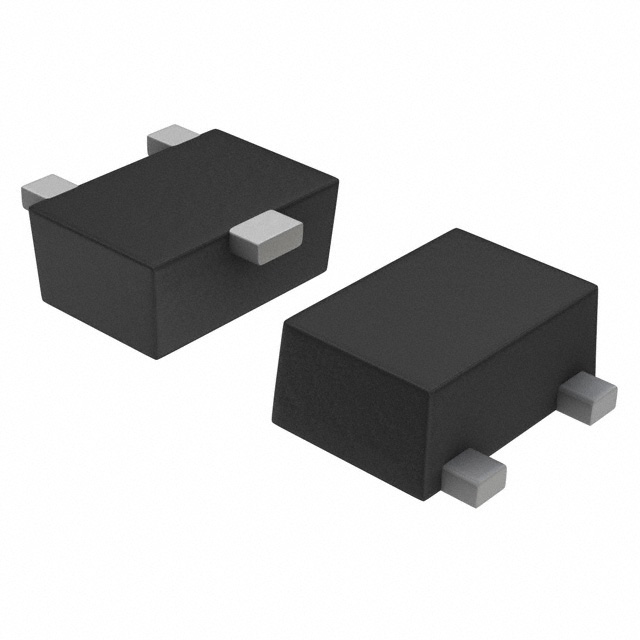

The BAW56 is a High-speed double diode. It consists of two high-speed switching diodes with common anodes, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package. The applications of BAW56 the are High-speed switching in thick and thin-film circuits.

Parametrics

BAW56 absolute maximum ratings: (1)repetitive peak reverse voltage: 85 V; (2)continuous reverse voltage: 75 V; (3)ontinuous forward current: 215 mA; (4)repetitive peak forward current: 450 mA; (5)non-repetitive peak forward current: t = 1 ms: 4 A, t = 1 ms: 1 A, t = 1 s: 0.5 A; (6)total power dissipation: 250 mW; (7)storage temperature: -65 +150 ℃; (8)junction temperature: 150 ℃.

Features

BAW56 features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward current: max. 450 mA.

Diagrams

BAW56 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BAW56
BAW56

Rectron

Diodes (General Purpose, Power, Switching) Dual,Switching,CA 215mA,75V

Data Sheet

0-3000: $0.05
3000-6000: $0.04
6000-12000: $0.03
BAW56 /T3
BAW56 /T3

NXP Semiconductors

Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11

Data Sheet

Negotiable
BAW56,215
BAW56,215

NXP Semiconductors

Diodes (General Purpose, Power, Switching) SW DBL 75V 215MA HS

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BAW56,235
BAW56,235

NXP Semiconductors

Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11

Data Sheet

0-1: $0.07
1-25: $0.07
25-100: $0.05
100-250: $0.03
BAW56_D87Z
BAW56_D87Z

Fairchild Semiconductor

Rectifiers 85V 200mA A1

Data Sheet

Negotiable
BAW56_Q
BAW56_Q

Fairchild Semiconductor

Rectifiers 85V 200mA A1

Data Sheet

Negotiable
BAW56-7
BAW56-7

Diodes Inc.

Diodes (General Purpose, Power, Switching) 75V 350mW

Data Sheet

Negotiable
BAW567DW
BAW567DW

Other


Data Sheet

Negotiable
