Product Summary

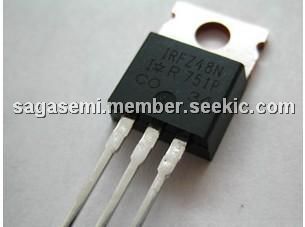

The IRFZ48NPBF is a HEXFET Power MOSFET. The IRFZ48NPBF utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRFZ48NPBF is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRFZ48NPBF absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 64A; (2)Continuous Drain Current, VGS @ 10V: 45A; (3)Pulsed Drain Current: 210A; (4)Power Dissipation: 130W; (5)Linear Derating Factor: 0.83W/℃; (6)Gate-to-Source Voltage: ± 20V; (7)Avalanche Current: 32A; (8)Repetitive Avalanche Energy: 13mJ; (9)Peak Diode Recovery dv/dt: 5.0V/ns; (10)Operating Junction and Storage Temperature Range: -55 to +175℃.

Features

IRFZ48NPBF features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated; (7)Lead-Free.

Diagrams

IRFZ48NPBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFZ48NPBF
IRFZ48NPBF
International Rectifier
MOSFET MOSFT 55V 64A 14mOhm 54nC
Data Sheet
0-1: $1.41
1-25: $0.91
25-100: $0.66
100-250: $0.62
