Product Summary
PRODUCT FEATURES
MAX9503 DirectDrive?, LPF, TQFN
MAX9505 DirectDrive, LPF, analog switch, TQFN
MAX4090 Input clamp, μDFN, SOT23, SC70
MAX9504 Optional DC offset bias, μDFN, SOT23
Parametrics
The MAX9502 small, low-power video amplifier with
integrated reconstruction filter operates from a supply
voltage as low as 2.5V. The small size and the low mini-
mum supply voltage make the MAX9502 ideal for
portable applications or small, low-power applications.
The MAX9502 DC-couples the input and the output,
resulting in a very small solution. The MAX9502 input can
be directly connected to the output of a video digital-to-
analog converter (DAC). The reconstruction filter is imple-
mented as a 4th-order Chebyshev with a minimum
passband of 5.5MHz, 3dB attenuation at 8MHz, and
55dB attenuation at 27MHz.
The output amplifier provides a closed-loop gain of
+6dB (MAX9502G) or +12dB (MAX9502M), and can
drive a 2V P-P video signal into a 150Ω load to ground.
The output signal is level-shifted so the sync tip is
110mV (typ) above ground.
The MAX9502 operates from a 2.5V to 3.6V single supp
and consumes only 5.3mA quiescent supply curren
An active-low shutdown mode reduces the supp
current to 0.01μA.
The MAX9502 is available in tiny 6-pin μDFN (1mm
1.5mm x 0.8mm) and 5-pin SC70 packages. Th
device is specified over the -40°C to +85°C extende
and -40°C to +125°C automotive temperature ranges.
Features
Tiny 6-Pin μDFN (1mm x 1.5mm x 0.8mm) and
5-Pin SC70 Packages
DC-Coupled Input and Output Save Board Space
4-Pole Chebyshev Filter
5.5MHz Passband
55dB Attenuation at 27MHz
0.01μA Low-Current Shutdown Mode
2.5V to 3.6V Single-Supply Operation
Video Amplifier with Fixed Gains of +6dB
(MAX9502G) or +12dB (MAX9502M)
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

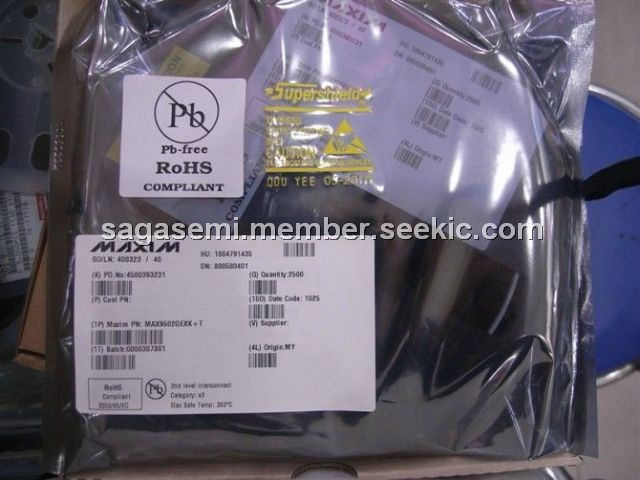

 MAX9502GEXK+T |
Maxim Integrated Products |
Video Amplifiers 2.5V Video Amplifier |
Data Sheet |
|
|
||||||||||||
