Product Summary
n 80C51 CPU
n 5 V operating voltage from 0 MHz to 40 MHz
n 16/32/64 kB of on-chip flash user code memory with ISP and IAP
n Supports 12-clock (default) or 6-clock mode selection via software or ISP
n SPI and enhanced UART
n PCA with PWM and capture/compare functions
n Four 8-bit I/O ports with three high-current port 1 pins (16 mA each)
n Three 16-bit timers/counters
n Programmable watchdog timer
n Eight interrupt sources with four priority levels
n Second DPTR register
n Low EMI mode (ALE inhibit)
n TTL- and CMOS-compatible logic levels
Parametrics
Type number Package
Name Description Version
P89V51RB2FA PLCC44 plastic leaded chip carrier; 44 leads SOT187-2
P89V51RB2FN DIP40 plastic dual in-line package; 40 leads (600 mil) SOT129-1
P89V51RB2BBC TQFP44 plastic thin quad flat package; 44 leads; body 10 × 10 × 1.0 mm SOT376-1
P89V51RC2FA PLCC44 plastic leaded chip carrier; 44 leads SOT187-2
P89V51RC2FBC TQFP44 plastic thin quad flat package; 44 leads; body 10 × 10 × 1.0 mm SOT376-1
P89V51RC2FN DIP40 plastic dual in-line package; 40 leads (600 mil) SOT129-1
P89V51RD2FA PLCC44 plastic leaded chip carrier; 44 leads SOT187-2
P89V51RD2FBC TQFP44 plastic thin quad flat package; 44 leads; body 10 × 10 × 1.0 mm SOT376-1
P89V51RD2BN DIP40 plastic dual in-line package; 40 leads (600 mil) SOT129-1

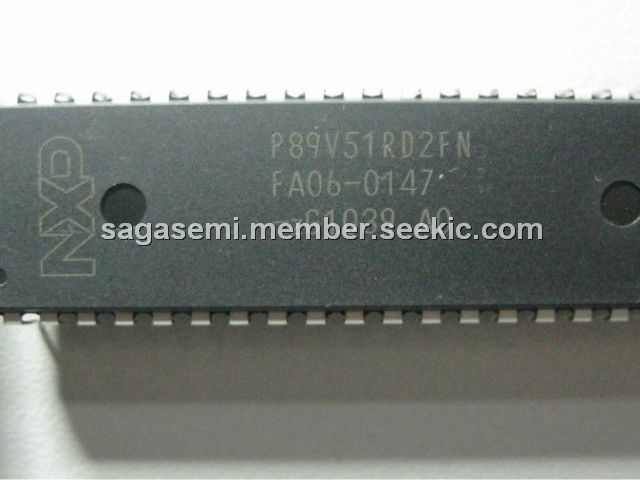

P89V51RD2FN DIP40 plastic dual in-line package; 40 leads (600 mil) SOT129-1
Features
The P89V51RB2/RC2/RD2 are 80C51 microcontrollers with 16/32/64 kB flash and
1024 B of data RAM.
A key feature of the P89V51RB2/RC2/RD2 is its X2 mode option. The design engineer
can choose to run the application with the conventional 80C51 clock rate (12 clocks per
machine cycle) or select the X2 mode (six clocks per machine cycle) to achieve twice the
throughput at the same clock frequency. Another way to benefit from this feature is to keep
the same performance by reducing the clock frequency by half, thus dramatically reducing
the EMI.
The flash program memory supports both parallel programming and in serial ISP. Parallel
programming mode offers gang-programming at high speed, reducing programming costs
and time to market. ISP allows a device to be reprogrammed in the end product under
software control. The capability to field/update the application firmware makes a wide
range of applications possible.
The P89V51RB2/RC2/RD2 is also capable of IAP, allowing the flash program memory to
be reconfigured even while the application is running.
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
P89V51RC2FN,112 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 80C51 32K FL / 512 R |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
P89V51RB2 |
Other |
Data Sheet |
Negotiable |
|
||||||
P89V51RB2BBC |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 16K/512 FL 12 CLK ISP/IAP COMM |
Data Sheet |
Negotiable |
|
|||||
P89V51RB2BBC,557 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 16K/512 FL 12 CLK |
Data Sheet |
Negotiable |
|
|||||
P89V51RB2FA,529 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 80C51 16K FL / 512 R |
Data Sheet |
Negotiable |
|
|||||
P89V51RB2FN,112 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 80C51 16K FL / 512 R |
Data Sheet |
Negotiable |
|
|||||
P89V51RC2 |
Other |
Data Sheet |
Negotiable |
|
