Product Summary

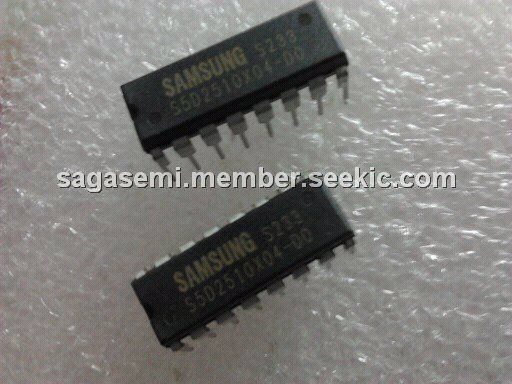

The S5D2510X04 is a stand-alone OSD Processor, which is used to display monitor adjustment or status information as a certain character or symbol on screen. Its basic operation includes making the R/ G/ B signal for the character or symbol by controlling the internal memory, synchronizing it with the horizontal flyback signal, and mixing it with the main video signal in the video AMP IC. The font data for making the character or symbol is stored in the internal ROM. The S5D2510X04 is accessed and controlled by the control data, transmitted from the micro controller through the I2C bus.
Parametrics
S5D2510X04 absolute maximum ratings: (1)Supply Voltage VDD: 0 to 6.5 V; (2)Input Voltage VI: 0 to 5.25 V; (3)Power Dissipation Pd: 1200 mW; (4)Operating Temperature Range Topr: -20 to 70 °C; (5)Storage Temperature Range Tstg: -40 to 125 °C.
Features
S5D2510X04 features: (1)Selectable Character Color (Up to 16 Color): Font basis; (2)Selectable Raster Color (Up to 16 Color): Font basis; (3)Programmable and Auto-adjustable Vertical Height of Character: Range 18 to 63; (4)Character Blinking and Shadowing: Font basis; (5)Programmable Symmetrical Row to Row Spacing: Range 0 to 31; (6)Horizontal Starting Position: 256 different positions (6 dots for each step); (7)Vertical Starting Position: 256 different positions (4 scan line for each step); (8)Scrolling: Effect where 1 character line is scrolled up or down; (9)4 Programmable Window Function and Window Priority Control.

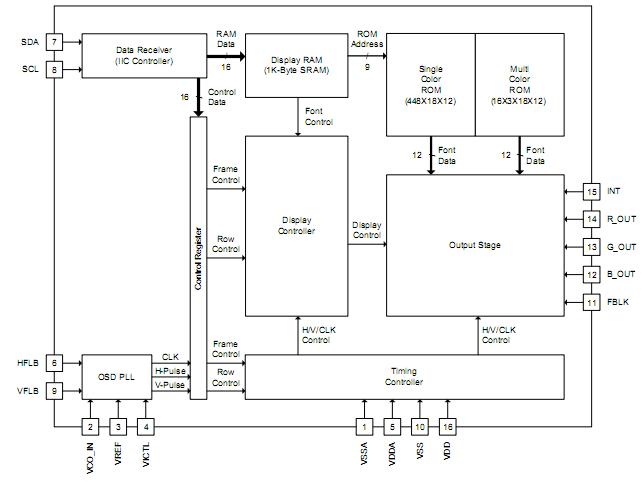

Diagrams
 |
