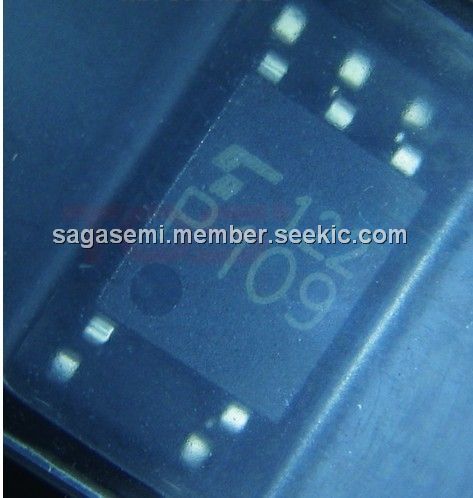

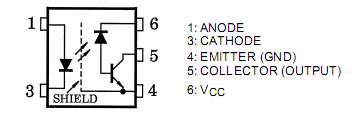

The Toshiba TLP109(TPL.E.O) mini-flat coupler is a small-outline coupler suitable for surface-mount assembly. The TLP109(TPL.E.O) consists of a high-output-power GaAℓAs light emitting diode optically coupled to a high-speed photodiode-transistor chip.
Parametrics
TLP109(TPL.E.O) absolute maximum ratings: (1)Forward current:20 mA; (2)Pulse forward current:40 mA; (3)Peak transient forward current:1 A; (4)Reverse voltage:5 V; (5)Output current:8 mA; (6)Peak output current:16 mA; (7)Supply voltage:-0.5 to 30 V; (8)Output voltage:-0.5 to 20 V; (9)Output power dissipation:100 mW.
Features
TLP109(TPL.E.O) features: (1)Isolation voltage: 3750 Vrms (min) ; (2)Switching speed: tpHL = 0.8 μs, tpLH = 0.8 μs (max) (@RL = 1.9 kΩ) ; (3)TTL-compatible ; (4)UL recognized :UL1577, File No.E67349 ; (5)c-UL recognized :CSA Component Acceptance Service No. 5A, File No.E67349 ; (6)VDE under application : DIN EN60747-5-2.
